SET - Standard parts - S50, S51, S70 - telscopic fork ( upper and lower fork guides, upper metal sheet and casted fork guides)

CatalogueNo.: o.Abb.

SET small parts for sealing telescopic front fork - S51, S53, S70, S83

SET telescopic fork repair set S50, S51, S53, S70 - 3,2mm withoit telescopic oil

CatalogueNo.: o.Abb.

SET telescopic fork repair set S50, S51, S53, S70 - reinforced springs 3,4mm

CatalogueNo.: o.Abb.

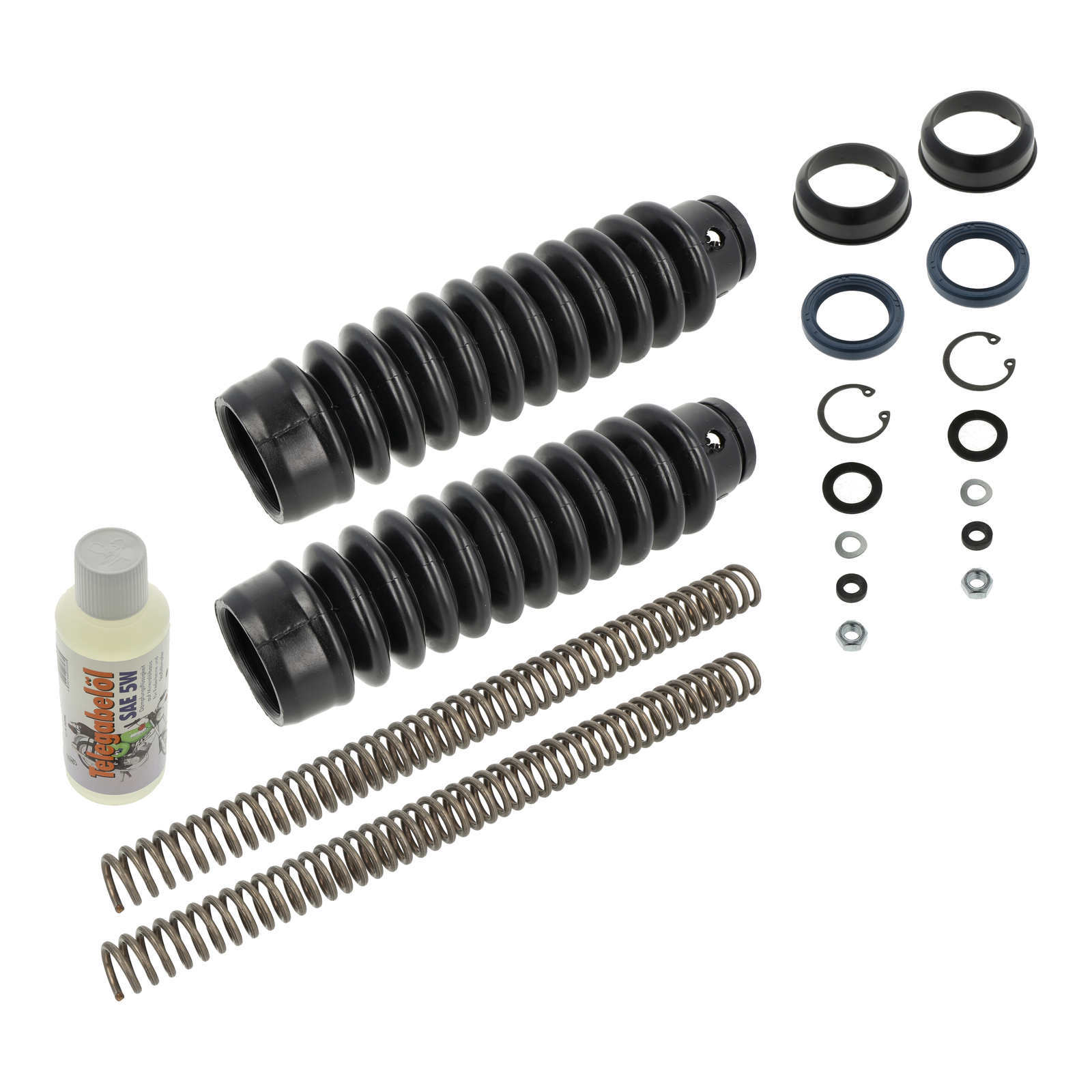

Telescopic fork repair set S50,S51,S53,S70 - 3,2mm

CatalogueNo.: o.Abb.

Front holder for rear trafficators, black - Ø15mm

S50, S51, S53
CatalogueNo.: 1

Front holder for rear trafficators, chromed - Ø15mm

S50, S51, S53
CatalogueNo.: 1

Front holder for turn signals, black - Ø10mm - with internal thread M8

S50, S51, S70
CatalogueNo.: 1

Front indicator holder, chromed Ø10mm - S50, S51, S70

CatalogueNo.: 1

Front indicator holder, galvanized Ø10mm - S50, S51, S70

CatalogueNo.: 1

Front turn signal holder, black Ø10mm

S50, S51, S70
CatalogueNo.: 1

Front turn signals holder, black Ø10mm - with Ø M8 - internal thread

S50, S51, S70
CatalogueNo.: 1

Front turn signals holder, chromed Ø10mm - with Ø M8 - internal thread

S50, S51, S70
CatalogueNo.: 1

Set standard parts 2x fastening of front indicators

CatalogueNo.: 1

SET trafficator holders, front / rear, galvanized - Ø10mm - S51, S70

CatalogueNo.: 1

Support for turn signal - Ø=15

S51, S70
CatalogueNo.: 1

Disc for speedometer - brillant galvanized - cast fork guide - S50, S51, S70

CatalogueNo.: 4

Disc for speedometer - cast fork guide S50, S51, S70

CatalogueNo.: 4

Disc for speedometer - chromed - Enduro fork guide, top left

CatalogueNo.: 4

Disc for speedometer chromed arched - cast fork guide S50, S51, S70

CatalogueNo.: 4

Disc washer A8,4-ST-A4K (DIN 134) - 8,4x18 - 2,0

For SR 50 2x telescopic fork
CatalogueNo.: 4

Grooved nut AM24x1,5 (guide fork) (DIN1804) galvanized S51,SR50

CatalogueNo.: 5

Grooved nut AM24x1,5 (guide fork) (DIN1804) galvanized S51,SR50

CatalogueNo.: 5

Slotted round nut M24x1,5 DIN1804 - self locking - galvanized - fork guide

S50, S51, S70 , S53, S83, SR50, SR80
CatalogueNo.: 5

Disc for grooved nut (fork guide) S51, SR50

CatalogueNo.: 6

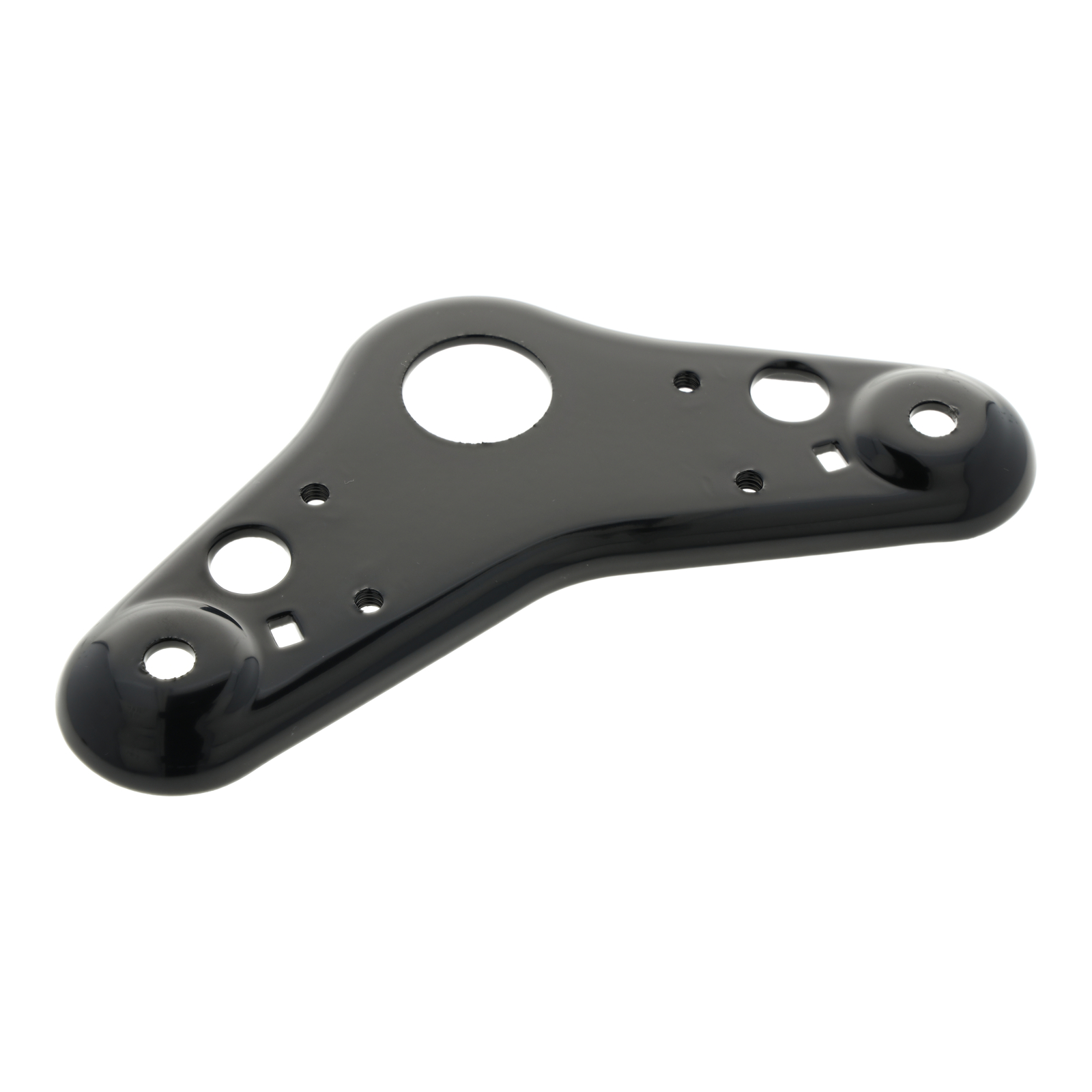

Top lug - black powdercoated - S50, S70, S51

CatalogueNo.: 8

Top lug - black powdercoated - S50, S70, S51

CatalogueNo.: 8

Top triple clamp - for clamping - black - Enduro S51E, S70E - cast version

CatalogueNo.: 8

Top triple clamp Enduro - for clamping - black primed - S51E, S70E - cast version

CatalogueNo.: 8

Top yoke - for clamping - cast version - not coated

CatalogueNo.: 8

Top yoke - for clamping - not coated - S50, S51, S70

CatalogueNo.: 8

2x Tube for telescopic fork for old fork=29.65mm S51,S70

CatalogueNo.: 10

Pair - Tubes for telescopic fork for old fork=29.65mm S51,S70

CatalogueNo.: 10

Tube for telescopic fork (old fork=29.65mm) S51,S70

CatalogueNo.: 10

Fork slider left hand side, slotted for clamping (old fork 29,65mm)

S51, S70, SR50, SR80
CatalogueNo.: 11

Fork slider right hand side (old fork 29,65mm)

S51, S70, SR50, SR80
CatalogueNo.: 11

Fork slider right hand side (old front fork 29,65mm)

S51, S70, SR50, SR80
CatalogueNo.: 11

Top steering cone

S51, S70, S53, S83, SR50, SR80
CatalogueNo.: 12

Top steering cone

S51, S70, S53, S83, SR50, SR80
CatalogueNo.: 12

Top steering cone

S51, S70, S53, S83, SR50, SR80
CatalogueNo.: 12

SET headset - ball cage, ball holder

CatalogueNo.: 13

Bottom steering cone S51,SR50,KR51

KR50: Replacement for front fork until chassis number: 60693
CatalogueNo.: 14

Bottom steering cone S51,SR50,KR51

KR50: Replacement for front fork until chassis number: 60693
CatalogueNo.: 14

Lower fork guide - with headlamp fastening - not coated - all S50, S51, S70-models

CatalogueNo.: 15

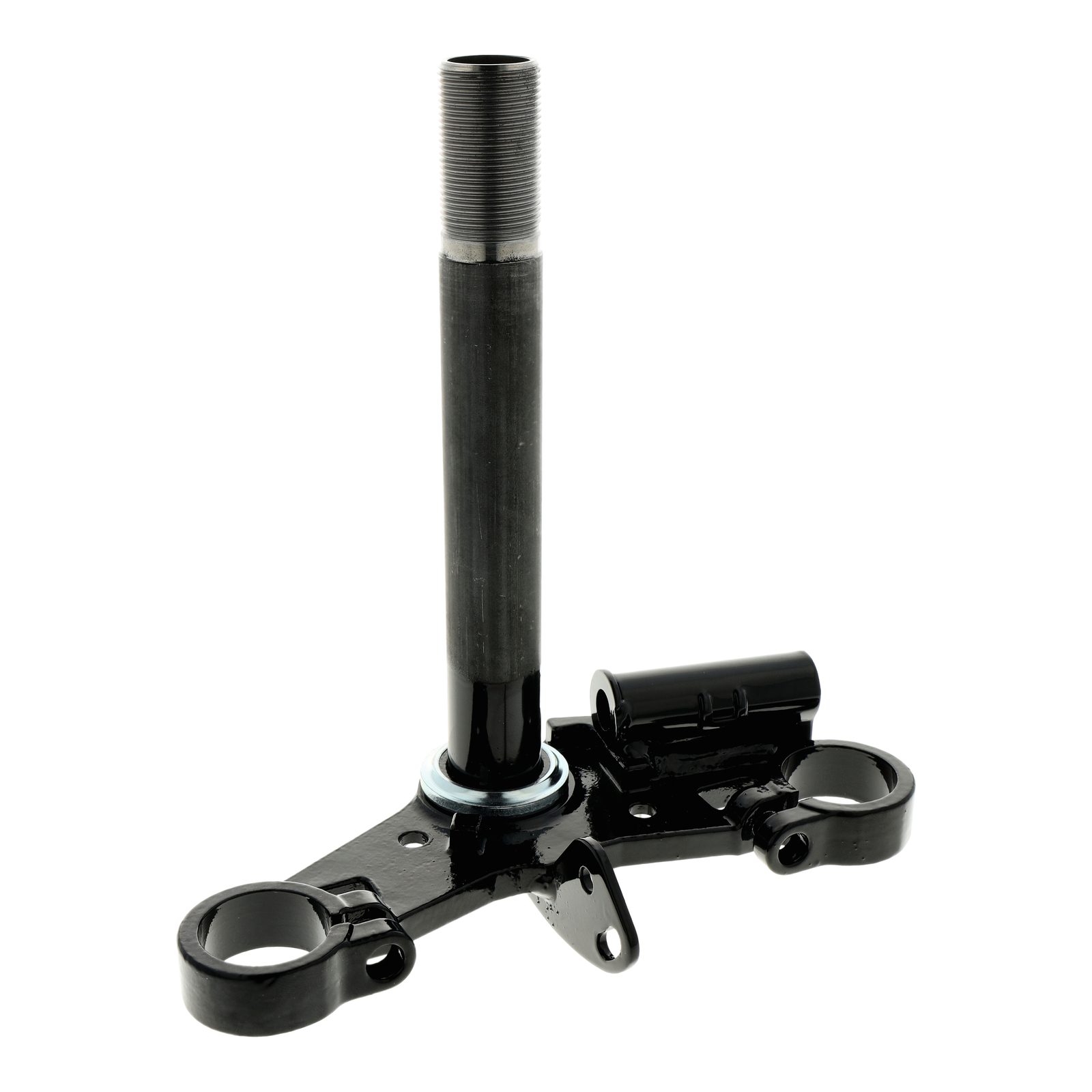

Lower fork guide - with headlamp fastening - only suitable with upper metal fork guide - S50, S51, S70

CatalogueNo.: 15

Lower fork guide - with headlamp fastening - S50, S51, S70

CatalogueNo.: 15

Lower fork guide - with long headlamp fastening - not coated - specially for S50

CatalogueNo.: 15

Lower fork guide - with long headlamp fastening, black primed PPB - specifically for Simson S50

- including steering cone from head set bearing
CatalogueNo.: 15

Lower guide bush for front fork - with long headlamp fastening, specifically for Simson S50

CatalogueNo.: 15

Spring washer B8 DIN 127 TGL 7403, Spring ring, zinc plated

MZ 500 all (S51, S70, SR50, SR80 - can be used for upper clamping device as well)
CatalogueNo.: 16

Hexagon screw M8x25 (DIN 933)

(S51, S70, SR50, SR80 - can be used for upper clamping device as well)
CatalogueNo.: 17

Hexagon screw M8x25 (DIN 933)

Original ESKA
(S51, S70, SR50, SR80 - can be used for upper clamping device as well)
CatalogueNo.: 17

Hexagon screw M8x25 (DIN 933)

Original ESKA
(S51, S70, SR50, SR80 - can be used for upper clamping device as well)
CatalogueNo.: 17

Cover cap for rubber gaiter

S51,SR50
CatalogueNo.: 18

Pair cover caps for rubber gaiter - S51, S70, S53, S83, SR50, SR80

CatalogueNo.: 18

Pair cover caps for rubber gaiter - S51, S70, S53, S83, SR50, SR80

CatalogueNo.: 18

SET telescopic gaiters - mixture between PVC and synthetic rubber - Simson Mokick / Scooter - black - no cover cap (207031)

Our own reproduction! These telescopic gaiters are made of a mixture between PVC and synthetic rubber and not pure PVC as usual. These telescopic gaiters are much more durable than the ones made only from PVC but, unfortunately, much more expensive than the PVC- ones. For this price you´ll get a pair (2 pieces).
CatalogueNo.: 19

SET telescopic gaiters - pure synthetic rubber - Simson Mokick / Scooter - black - no cover cap (207031)

Our own reproduction! Even better material than the PVC/ synthetic rubber ones! These telescopic gaiters are pure synthetical rubber and not pure PVC as usual. These telescopic gaiters are much more durable than the ones made only from PVC but, unfortunately, much more expensive than the PVC- ones and the mixture ones. For this price you´ll get a pair (2 pieces).
CatalogueNo.: 19

Stop plate for spring support S51, SR50

CatalogueNo.: 20

Circlip 25x1,2 (DIN472)

CatalogueNo.: 21

Disc washer top 13,5x21x1 f. spring support - Simson telescopic fork

CatalogueNo.: 22

Disc washer top 13,5x21x1 f. spring support - Simson telescopic fork

CatalogueNo.: 22

Pair sealing washers, upper washers Ø13,5x21x1 spring support front fork

CatalogueNo.: 22

Top spring support Simson telescopic fork (with hole for grooved pin) Enduro

CatalogueNo.: 23

Upper spring support (front fork) Simson

for Enduro please only use the ones with hole and grooved pin - orderno: 81924
CatalogueNo.: 23

Compression spring for Simson telescopic fork Ø3,6mm - both spring support have to be adjusted

CatalogueNo.: 24

Pressure spring for Simson telescopic fork Ø3,2mm - mokick, scooter

CatalogueNo.: 24

Pressure spring for Simson telescopic fork Ø3,4mm - reinforced

CatalogueNo.: 24

SET 2x reinforced pressure spring 3,6mm incl. mounted spring supports - Special production - used in Enduro/ Cross/ offroad

CatalogueNo.: 24

Set top flange support strut right/left, black coated - S50, S51, S53, S70, S83 - B, C streetracing

CatalogueNo.: 24, 27

Hexagon nut M6 TGL 0-934-6

CatalogueNo.: 25

Hexagon nut M6 TGL 0-934-6

Original ESKA
CatalogueNo.: 25

Hexagon nut M6 TGL 0-934-6

Original ESKA
CatalogueNo.: 25

Curved disc spring B6 TGL 0-137

For Mfa SL1 picture number: 8, 11, 19, 22 and 26
CatalogueNo.: 26

Curved disc spring B6 TGL 0-137, chromed

For Mfa SL1 picture number: 8, 11, 19, 22 and 26
CatalogueNo.: 26

Spring washer DIN 137-B6-FSt-A4R

CatalogueNo.: 26

Lower spring support - front fork - without hole for spring security

for Enduro please only use the ones with hole and grooved pin - orderno: 81925
CatalogueNo.: 27

Bolt for top spring support - Simson telescopic fork 379mm long Mokick

CatalogueNo.: 28

Bolt for top spring support - Simson telescopic fork 379mm long Mokick

CatalogueNo.: 28

Rod for spring support - Simson telescopic fork - 440mm long - Scooter SR50, SR80, S51E, S70E, Enduro

CatalogueNo.: 28

Cone - spring support - Simson telescopic fork

CatalogueNo.: 29

Rubber washer 6x10x2

CatalogueNo.: 30

Radial shaft seal 30x40x7

CatalogueNo.: 31

Radial shaft seal LYO 30x40x7

CatalogueNo.: 31

Radial shaft seal LYO 30x40x7 (double lip)

CatalogueNo.: 31

Radial shaft seal NJK 30x40x07 - FPM - Viton - brown - dustlip

CatalogueNo.: 31

Radial shaft seal NJK 30x40x07 Pneumant

CatalogueNo.: 31

Radial shaft seal SKF - CR 30x40x7 HMSA10 RG - with protection lip

CatalogueNo.: 31

Shaft seal NJK 30x40x07 - FPM - brown - high lip

CatalogueNo.: 31

Hexagon screw M8x40 (DIN 933)

CatalogueNo.: 32

Hexagon screw M8x40 TGL 0-933-8.8

Original ESKA
CatalogueNo.: 32

Spring washer B8 TGL 0-137

S51 upper right side suspension strut
For old rear footrests 3931026005 and 3931025005 which are replaced by the above mentioned rear footrest sets.
CatalogueNo.: 33

ESKA Hexagon nut, zink plated M8 TGL 0-934-8.8, TGL 0-934-8, (DIN 934)

Original ESKA
MZ 500 all
CatalogueNo.: 34

Hexagon nut, zink plated M8 TGL 0-934-8.8, TGL 0-934-8, (DIN 934)

MZ 500 all
CatalogueNo.: 34

Dust wiper for front fork - Simson S51, SR50

CatalogueNo.: 35

Pair dust wipers for front fork extended - Simson S50, S51, S53, SR50

CatalogueNo.: 35

Bowden cable feedthrough on head tube S51,S70 S51, S70

CatalogueNo.: 37

Dowel pin 4x6 spring support - Simson telescopic fork with Enduro mudguard

CatalogueNo.: 37

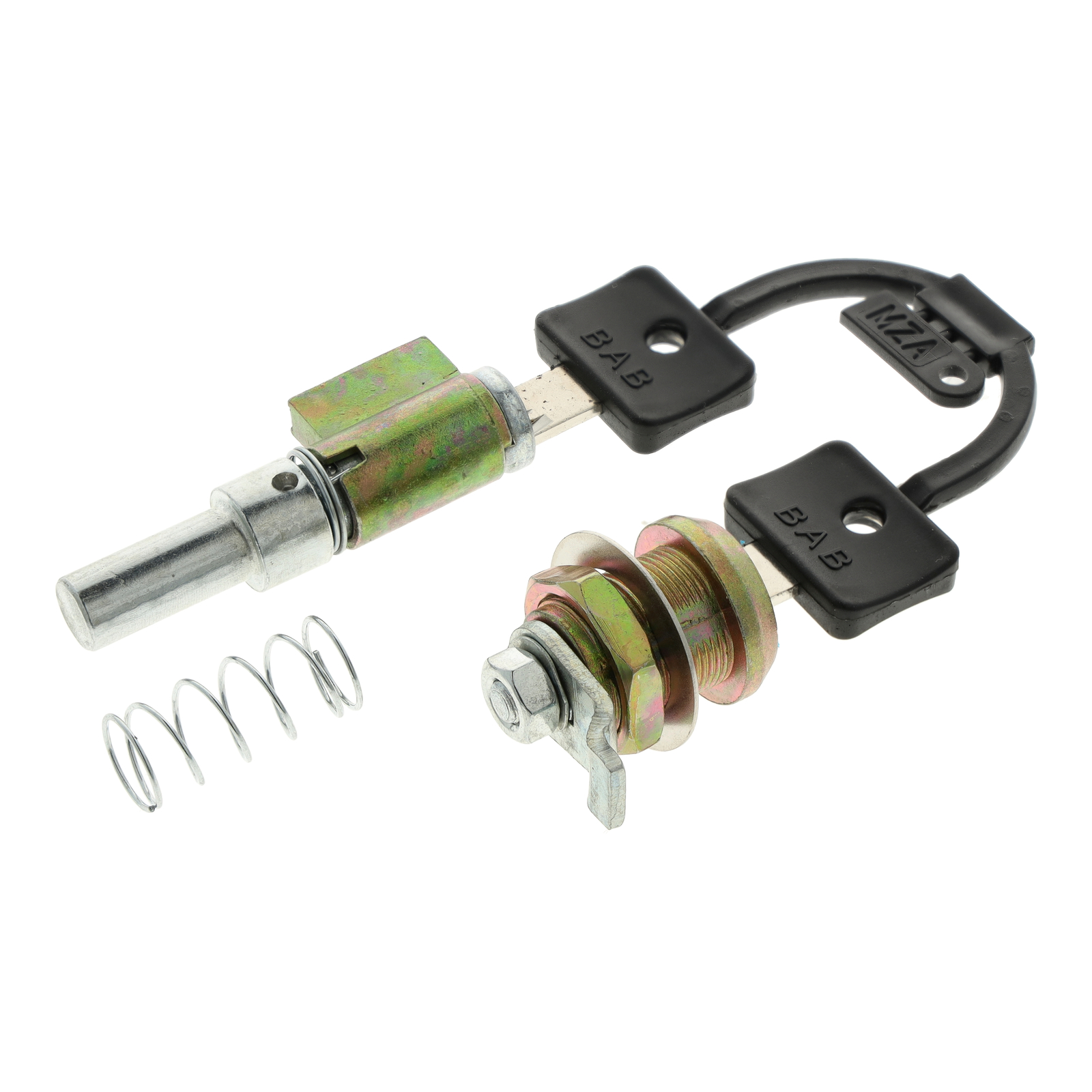

Lock set BAB - SR50, SR80 - one locking system with two keys - steering lock and spring - side cover lock

CatalogueNo.: 37

P.U. 10L Parallel grooved pin 4x6 spring support (DIN 1473)

CatalogueNo.: 37

SET of locks BAB - S51, S70 - locking system with two keys - steering lock and spring + side cover lock

CatalogueNo.: 37

Steering lock BAB

ETZ, TS, S51
CatalogueNo.: 37

Steering lock BAB, with spring

S51,S53, SR50, ETZ
CatalogueNo.: 37
