Wet air filter with starter washer B 25/70 DIN 73352
GTIN/EAN: 4056144126195
SR1, SR2, SR2E

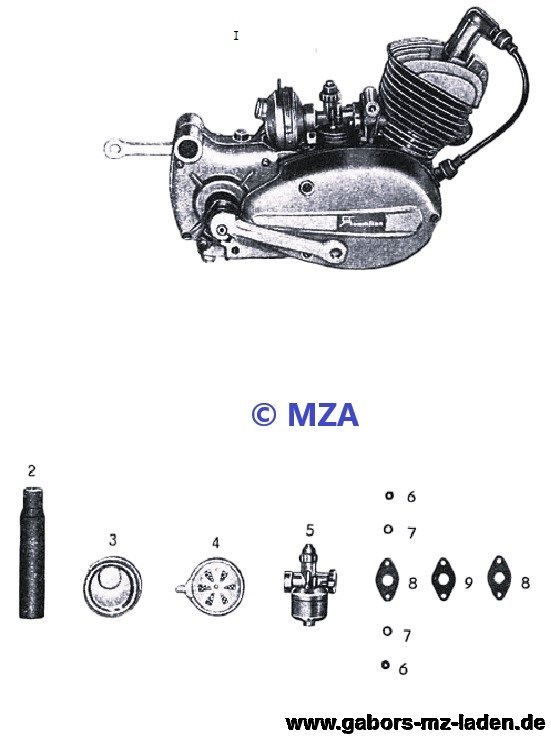

CatalogueNo.: 4
Carburetor BVF NKJ 122-4 with single lever regulation - SR2, SR2E
GTIN/EAN: 4056144137849
NKJ carburettor BVF 122-4 with single lever regulation - intended for SR2, SR2E
Standard main jet = 55
The SET includes a total of three main jets: 52.55, 57
The additional 55mm main jet serves as a repair jet.
CatalogueNo.: 5
Carburetor complete NKJ123-4
CatalogueNo.: 5
Repair kit carburetor NKJ 123-4 for Simson SR1 SR2 SR2E Spatz KR50 MAW 22 parts
scope of delivery:
1x Main jet M6
1x Float needle valve
1x Valve body cap
1x Compression spring - Throttle valve
1x needle
1x needle clip
1x Throttle valve
1x Float + 1x dowel pin
1x Jet retaining screw
1x Tickler + 1x spring/washer/locking washer
1x Needle jet 210
1x Float chamber
1x Hollow screw
1x Locking screw
3x Fiber seals
1x Idle speed check screw + 1x spring
without seal for float chamber
CatalogueNo.: 5
Hexagon nut M6 TGL 0-934-6
GTIN/EAN: 4056144027898
PartNo. Simson: 1403-O-Z 1365-O-Z 1347-O-Z 1334-O-Z 1324-O-Z 1304-O-Z 1066-O-M 090023 220202503 260202500 9900072830 260102503 260202501 01268 090024 260202503 9900571108 01266 260202502 9900072507 01268 01268
PartNo. AWZ: 9900072131, 9900072156
PartNo. ZAK: 1357344104010546, 1357211205080033, 1357211205081044 1357211205063030, 1357211205083031
CatalogueNo.: 6
Hexagon nut M6 TGL 0-934-6
PartNo. Simson: 1403-O-Z 1365-O-Z 1347-O-Z 1334-O-Z 1324-O-Z 1304-O-Z 090023 220202503 260202500 9900072830 260102503 260202501 01268 090024 260202503 9900571108 01266 260202502 9900072507 01268 01268
PartNo. AWZ: 9900072131, 9900072156
PartNo. ZAK: 1357344104010546, 1357211205080033, 1357211205081044 1357211205063030, 1357211205083031
Original ESKA
CatalogueNo.: 6
Hexagon nut M6 TGL 0-934-6
PartNo. Simson: 090023 220202503 260202500 9900072830 260102503 260202501 01268 090024 260202503 9900571108 01266 260202502 9900072507 01268 01268
PartNo. AWZ: 9900072131, 9900072156
PartNo. ZAK: 1357344104010546, 1357211205080033, 1357211205081044 1357211205063030, 1357211205083031
Original ESKA
CatalogueNo.: 6
Curved disc spring A6-Fst-A4k (DIN 137) - arched
GTIN/EAN: 4056144133056
CatalogueNo.: 7
Curved disc spring B6 TGL 0-137
PartNo. Simson: 11326 9900022805 090178 260306551 260306550 9900022926 26030655
PartNo. AWZ: 9900022075 9900022083
PartNo. ZAK: 1357343101015063, 1357343005010078 1357343005013076, 1357343005010051, 1357343005010078
For Mfa SL1 picture number: 8, 11, 19, 22 and 26
CatalogueNo.: 7
Gasket for carburetor (isolating flange gasket) - internal Ø11mm - SR1, SR2, SR2E, SR4-1 (brand: PLASTANZA / Material ABIL)
GTIN/EAN: 4056144026228
CatalogueNo.: 8
Gasket for carburetor - ø 13mm, 0,50mm, Kautasit AF200 - SR1, SR2, SR2E, SR4-1
GTIN/EAN: 4056144188711
CatalogueNo.: 8
Gasket for inlet manifold (insulating flange gasket) - internal Ø11mm, 4mm strong
CatalogueNo.: 9
