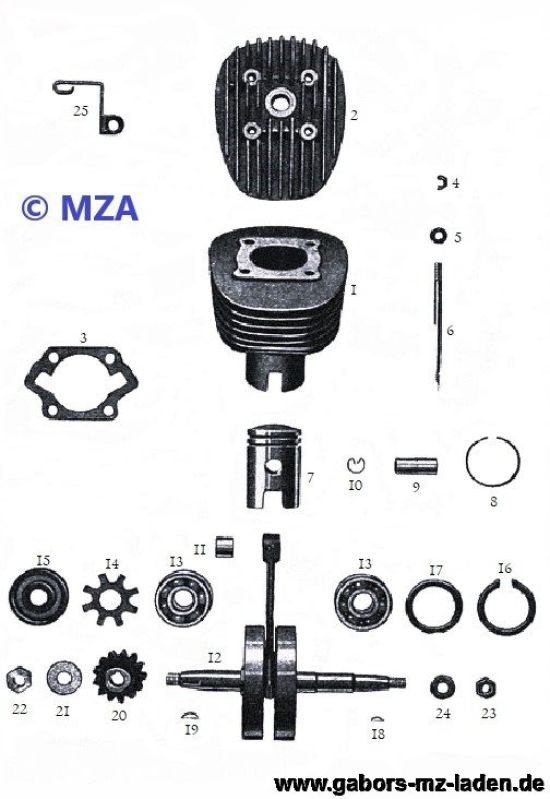

14. Cylinder, crankshaft, piston

All prices including German VAT, excluding shipping.

Details

Ball bearing set (SKF Brand) - Soemtron-Rheinmetall-engine- SR1, SR2, KR50, SR4-1

OrderNo.: 13512-00S
GTIN/EAN: 4056144058250

26,80 €

in stock

Details

Cylinder and piston KR50, SR2, SR2E, SR1 (inlet 23mm wide + 12mm high)

Reproduction

OrderNo.: F198290

PartNo. Simson: 1000035300 1100035329 04-842.11-0 04-842.01-0

CatalogueNo.: 1

79,50 €

currently not available

availability info per
Email:

Details

Cylinder til up to 50mm Ø - drilling, honing and window chamfering

Used, regenerated part

OrderNo.: 500021-15-1

CatalogueNo.: 1

42,00 €

delivery time 5-10 workdays

Details

Deposit for cylinder SR2, will be refunded if regenerable cylinder is submitted

OrderNo.: 1000035300.p

CatalogueNo.: 1

40,00 €

delivery time 5-10 workdays

Details

SR2 1,8 HP refurbishment of your cylinder, incl. original piston, gudgeon pin, piston rings and circlips

Used, regenerated part

OrderNo.: 1000035300.r

PartNo. Simson: 1000035300

The prize refers to the drilling, honing and chamfered edges, processing time approx. 2-3 weeks.
CatalogueNo.: 1

78,00 €

delivery time 5-10 workdays

Details

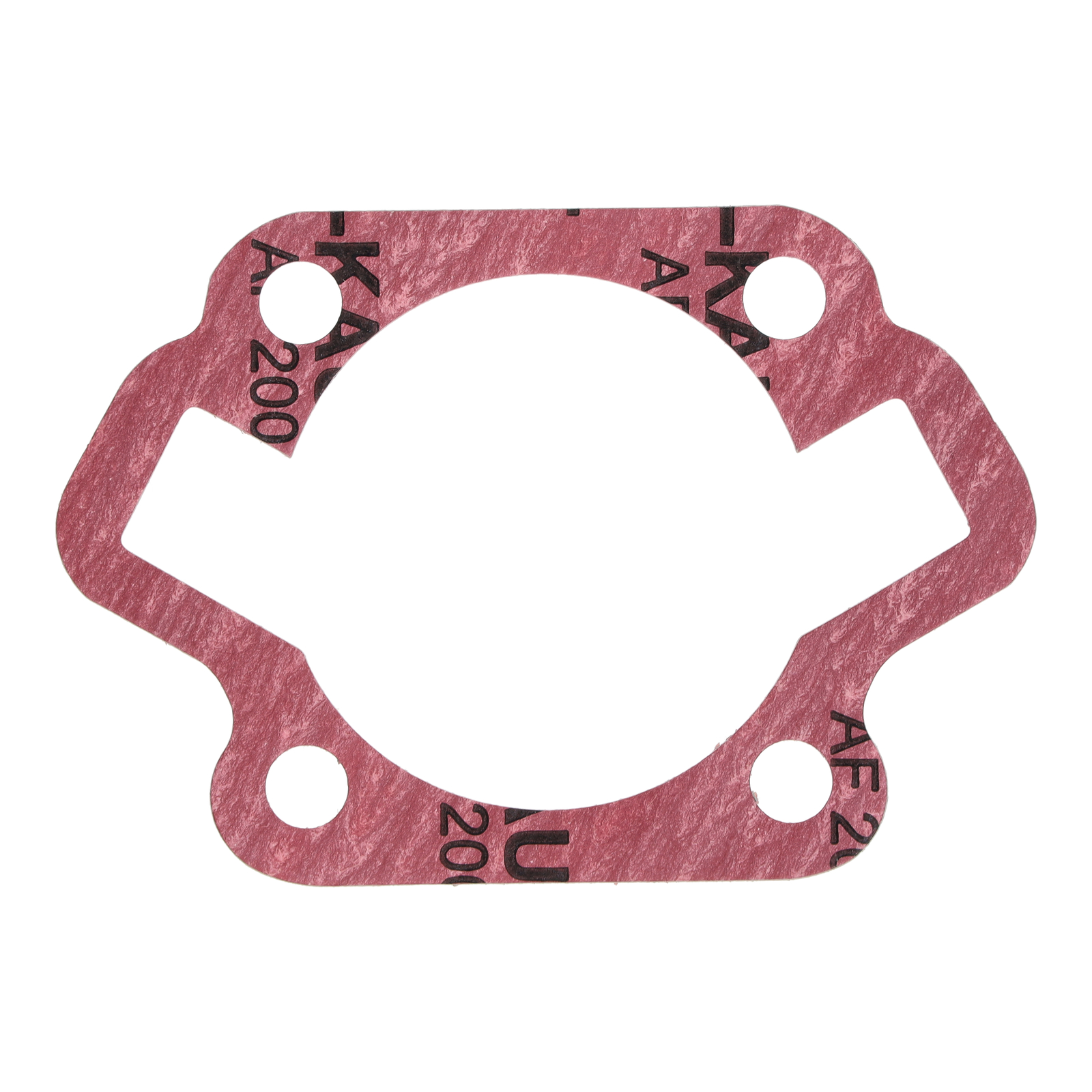

Cylinder base gasket 0,25mm, Kautasit AF200 - SR1, SR2, SR2E, KR50, SR4-1

OrderNo.: 24700-K-A
GTIN/EAN: 4056144188766

PartNo. Simson: 35303

CatalogueNo.: 3

2,10 €

delivery time 2-3 workdays

Details

Cylinder base gasket 0,50mm, Kautasit AF200 - SR1, SR2, SR2E, KR50, SR4-1

OrderNo.: 24700-K-B
GTIN/EAN: 4056144188759

PartNo. Simson: 35303

CatalogueNo.: 3

2,40 €

delivery time 2-3 workdays

Details

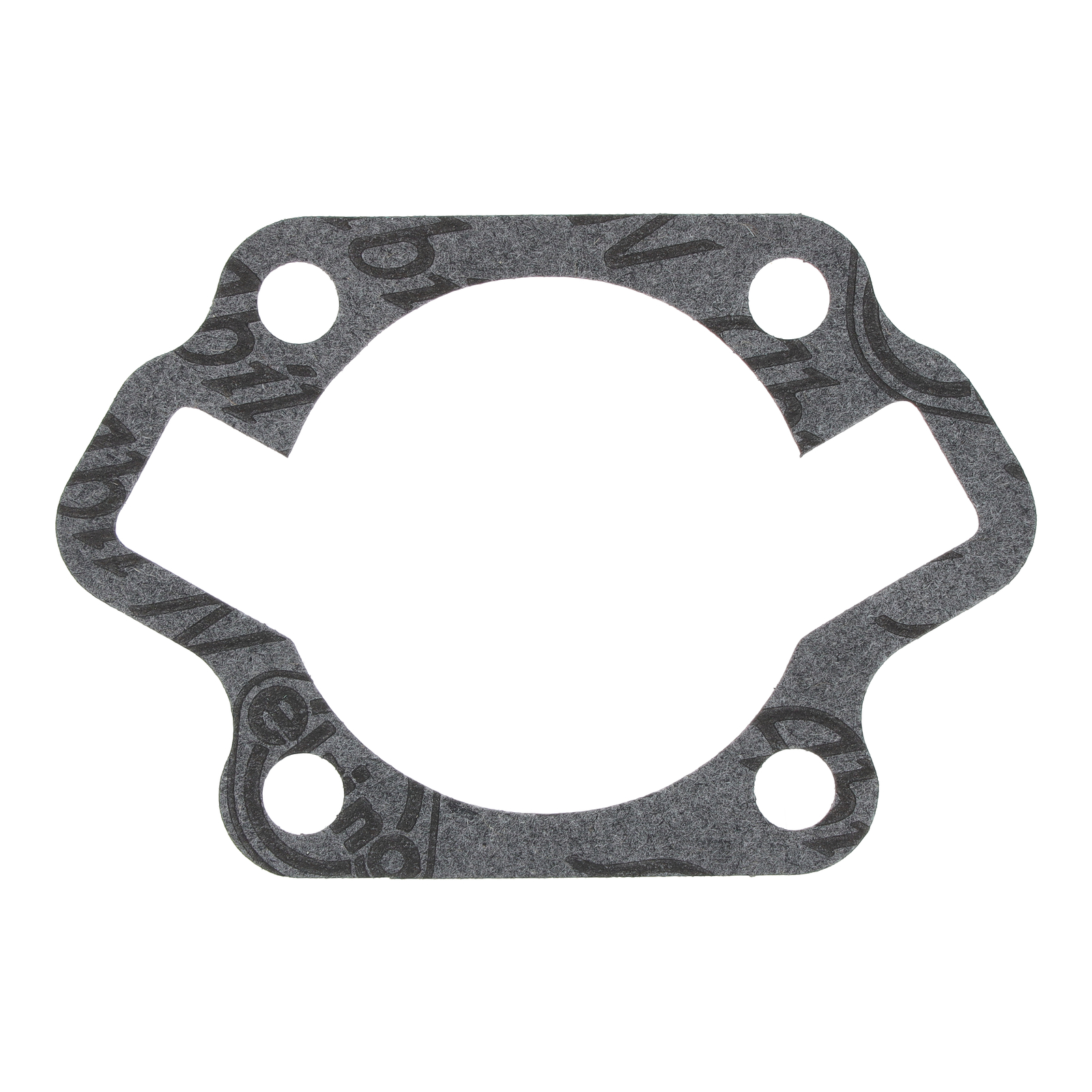

Cylinder base gasket, Simson engine " Soemtron Rh 50 "

Reproduction

OrderNo.: 24700-00S
GTIN/EAN: 4056144026280

PartNo. Simson: 1135303503 1250200002 04-842.04-0

SR1, SR2, SR2E, KR50, SR4-1
brand: PLASTANZA / Material ABIL
CatalogueNo.: 3

1,80 €

delivery time 2-3 workdays

Details

Cylinder base gasket, Simson engine " Soemtron Rh 50 "

Genuine spare

OrderNo.: 1135303503

PartNo. Simson: 1135303503 1250200002 04-842.04-0

SR1, SR2, SR2E, KR50, SR4-1
CatalogueNo.: 3

2,30 €

in stock

Details

Hexagon nut M6 TGL 0-934-6

OrderNo.: 94-30.522
GTIN/EAN: 4056144027898

PartNo. MZ: 94-30.522 94-34.522 94-30.483 311120100060, 36221, MNOSZ 2260 9430483000 9430522000 8103/4060 8103/3060
PartNo. Simson: 1403-O-Z 1365-O-Z 1347-O-Z 1334-O-Z 1324-O-Z 1304-O-Z 1066-O-M 090023 220202503 260202500 9900072830 260102503 260202501 01268 090024 260202503 9900571108 01266 260202502 9900072507 01268 01268
PartNo. AWZ: 9900072131, 9900072156
PartNo. ZAK: 1357344104010546, 1357211205080033, 1357211205081044 1357211205063030, 1357211205083031

CatalogueNo.: 4

0,50 €

in stock

Details

Hexagon nut M6 TGL 0-934-6

Genuine spare

OrderNo.: 94-34.522

PartNo. MZ: 94-30.522 94-34.522 94-30.483 311120100060, 36221, MNOSZ 2260 9430483000 9430522000 8103/4060 8103/3060
PartNo. Simson: 1403-O-Z 1365-O-Z 1347-O-Z 1334-O-Z 1324-O-Z 1304-O-Z 090023 220202503 260202500 9900072830 260102503 260202501 01268 090024 260202503 9900571108 01266 260202502 9900072507 01268 01268
PartNo. AWZ: 9900072131, 9900072156
PartNo. ZAK: 1357344104010546, 1357211205080033, 1357211205081044 1357211205063030, 1357211205083031

Original ESKA
CatalogueNo.: 4

0,60 €

in stock

Details

Hexagon nut M6 TGL 0-934-6

Genuine spare

OrderNo.: 94-30.483

PartNo. MZ: 94-30.522 94-34.522 94-30.483 311120100060, 36221, MNOSZ 2260 9430483000 9430522000 8103/4060 8103/3060
PartNo. Simson: 090023 220202503 260202500 9900072830 260102503 260202501 01268 090024 260202503 9900571108 01266 260202502 9900072507 01268 01268
PartNo. AWZ: 9900072131, 9900072156
PartNo. ZAK: 1357344104010546, 1357211205080033, 1357211205081044 1357211205063030, 1357211205083031

Original ESKA
CatalogueNo.: 4

0,40 €

in stock

Details

Curved disc spring B6 TGL 0-137

OrderNo.: 94-38.345

PartNo. MZ: 94-38.345 90-17.630 94-36.345 9438345000 94-38.365 9438365000 8171/0060 8171/3060
PartNo. Simson: 11326 9900022805 090178 260306551 260306550 9900022926 26030655
PartNo. AWZ: 9900022075 9900022083
PartNo. ZAK: 1357343101015063, 1357343005010078 1357343005013076, 1357343005010051, 1357343005010078

For Mfa SL1 picture number: 8, 11, 19, 22 and 26
CatalogueNo.: 5

0,40 €

in stock

Details

Curved disc spring B6 TGL 0-137, chromed

OrderNo.: 11136-C-S
GTIN/EAN: 4056144024293

PartNo. MZ: 8171/0060 8171/3060
PartNo. Simson: 090178 090187

For Mfa SL1 picture number: 8, 11, 19, 22 and 26
CatalogueNo.: 5

1,30 €

in stock

Details

Spring washer DIN 137-B6-FSt-A4R

Genuine spare

OrderNo.: 9438345000

PartNo. MZ: 94-38.345 94-36.345 9438345000 94-38.365 9438365000 8171/0060 8171/3060
PartNo. Simson: 11326 9900022805 090178 260306551 260306550 9900022926 26030655
PartNo. AWZ: 9900022075 9900022083
PartNo. ZAK: 1357343101015063, 1357343005010078 1357343005013076, 1357343005010051, 1357343005010078

CatalogueNo.: 5

2,00 €

in stock

Details

Stud bolt for cylinder fastening (galvanised black) M6x80 SR2E, SR2, KR50

OrderNo.: 24701-00S
GTIN/EAN: 4056144042051

PartNo. Simson: 260041104 9900081157

CatalogueNo.: 6

4,50 €

delivery time 2-3 workdays

Details

ELKO Piston complete 38,7 (3rd excess 3B) Soemtron Motor

Genuine spare

OrderNo.: 2100000124763

PartNo. Simson: 1135355506 101443 1250300001 35307-3

We only sell original GDR pistons together with a cylinder regeneration!
CatalogueNo.: 7

45,00 €

in stock

Details

Piston complete Ø38 +1,00 mm 4th excess - Soemtron-excess

OrderNo.: 24624-GA-S
GTIN/EAN: 4056144154594

PartNo. Simson: 35307-4

CatalogueNo.: 7

33,20 €

delivery time 2-3 workdays

Details

Piston complete 38,47 ( 2nd excess ) Soemtron-engine

Reproduction

OrderNo.: 24622-K-S
GTIN/EAN: 4056144022251

PartNo. Simson: 1135354505 101443 1250300001 35307-2

CatalogueNo.: 7

24,50 €

in stock

Details

Piston complete 38,72 ( 3rd excess) Soemtron-engine

Reproduction

OrderNo.: 24623-K-S
GTIN/EAN: 4056144022268

PartNo. Simson: 1135355506 101443 1250300001 35307-3

CatalogueNo.: 7

24,50 €

in stock

Details

Piston complete 38,97 (4th excess) Soemtron-excess

Reproduction

OrderNo.: 24624-K-S
GTIN/EAN: 4056144022275

PartNo. Simson: 1135356507 101443 1250300001 35307-4

CatalogueNo.: 7

24,50 €

in stock

Details

Piston complete 39,22 (5th excess) Soemtron-engine

Reproduction

OrderNo.: 24625-K-S
GTIN/EAN: 4056144022282

PartNo. Simson: 1135357508 101443 1250300001 35307-5

CatalogueNo.: 7

24,50 €

in stock

Details

Piston complete 39,47 ( 6th excess) Soemtron-engine

Reproduction

OrderNo.: 24626-K-S
GTIN/EAN: 4056144022299

PartNo. Simson: 1135358500 101443 1250300001 35307-6

CatalogueNo.: 7

24,50 €

in stock

Details

Piston complete Ø37,93 mm (basic size) - Soemtron-engine

OrderNo.: 24620-GA-B
GTIN/EAN: 4056144154549

PartNo. Simson: 35307-0

CatalogueNo.: 7

32,20 €

delivery time 2-3 workdays

Details

Piston complete Ø38 +0,25 mm, 1st excess - Soemtron-engine

OrderNo.: 24621-GA-S
GTIN/EAN: 4056144154563

PartNo. Simson: 35307-1

CatalogueNo.: 7

33,20 €

delivery time 2-3 workdays

Details

Piston complete Ø38 +0,50 mm, 2nd excess - Soemtron-engine

OrderNo.: 24622-GA-S
GTIN/EAN: 4056144154570

PartNo. Simson: 35307-2

CatalogueNo.: 7

33,20 €

delivery time 2-3 workdays

Details

Piston complete Ø38 +0,75 mm, 3rd excess - Soemtron-engine

OrderNo.: 24623-GA-S
GTIN/EAN: 4056144154587

PartNo. Simson: 35307-3

CatalogueNo.: 7

33,20 €

delivery time 2-3 workdays

Details

Piston ring 38,25

Reproduction

OrderNo.: 5996103000649

PartNo. Simson: S-38.2.002.R2 002.02.000.02+1

Spring force excentric
CatalogueNo.: 8

2,80 €

in stock

Details

Piston ring 38,5

Reproduction

OrderNo.: 5996103000656

PartNo. Simson: 35307 S-38.2.002.R2 002.02.000.02+2

Spring force excentric
CatalogueNo.: 8

2,80 €

in stock

Details

Piston ring 38,5

Reproduction

OrderNo.: 5996103000663

PartNo. Simson: S-38.2.002.R3 002.02.000.02+3

Spring force excentric
CatalogueNo.: 8

2,80 €

in stock

Details

Piston ring 39,00

Reproduction

OrderNo.: 5996103000670

PartNo. Simson: S-38.2.002.R4 002.02.000.02+4

Spring force excentric
CatalogueNo.: 8

2,80 €

in stock

Details

Piston ring 39,50

Reproduction

OrderNo.: 2100000131969

PartNo. Simson: S-38.2.002.R6 002.02.000.02+6

Spring force excentric
CatalogueNo.: 8

2,80 €

in stock

Details

Piston ring 39,75

Reproduction

OrderNo.: 5996103000687

PartNo. Simson: S-38.2.002.R7 002.02.000.02+7

Spring force excentric
CatalogueNo.: 8

2,80 €

in stock

Details

Piston ring SET 2pcs - Ø38,00 Soemtron engine

Reproduction

OrderNo.: 24630-00S
GTIN/EAN: 4056144022305

PartNo. Simson: 35308-0 1250300002 9900512846

CatalogueNo.: 8

9,20 €

in stock

Details

Piston ring SET 2pcs - Ø38,25 Soemtron engine

Reproduction

OrderNo.: 24631-00S
GTIN/EAN: 4056144022312

PartNo. Simson: 35308-1 1250300002 9900512428

CatalogueNo.: 8

9,60 €

in stock

Details

Piston ring SET 2pcs - Ø38,50 Soemtron engine

Reproduction

OrderNo.: 24632-00S
GTIN/EAN: 4056144022329

PartNo. Simson: 35308-2 1250300002 9900512436

CatalogueNo.: 8

9,40 €

in stock

Details

Piston ring SET 2pcs - Ø38,75 Soemtron engine

Reproduction

OrderNo.: 24633-00S
GTIN/EAN: 4056144022336

PartNo. Simson: 35308-3 1250300002 9900512444

CatalogueNo.: 8

9,40 €

in stock

Details

Piston ring SET 2pcs - Ø39,00 Soemtron engine

Reproduction

OrderNo.: 24634-00S
GTIN/EAN: 4056144022343

PartNo. Simson: 35308-4 1250300002 9900512452

CatalogueNo.: 8

9,40 €

in stock

Details

Piston ring SET 2pcs - Ø39,25 Soemtron engine

Reproduction

OrderNo.: 24635-00S
GTIN/EAN: 4056144022350

PartNo. Simson: 35308-5 1250300002 9900512460

CatalogueNo.: 8

9,30 €

in stock

Details

Piston ring SET 2pcs - Ø39,50 Soemtron engine

Reproduction

OrderNo.: 24636-00S
GTIN/EAN: 4056144022367

PartNo. Simson: 35308-6 1250300002 9900512477

CatalogueNo.: 8

9,40 €

in stock

Details

Piston ring Ø38,00 (Type 1 - 2,5mm high)

Reproduction

OrderNo.: F2195

PartNo. Simson: 35307 9900512838 1250300002 S-38.2.002

CatalogueNo.: 8

2,80 €

in stock

Details

Gudgeon pin 12x7x30 S51, S53

OrderNo.: 10013-00S
GTIN/EAN: 4056144044680

PartNo. Simson: 090213 18585 211660018 211660048 9900238008 9900239283
PartNo. ZAK: 1357933128010043

CatalogueNo.: 9

2,50 €

in stock

Details

Gudgeon pin 12x7x30 S51,S53

OrderNo.: 10013
GTIN/EAN: 4056144004103

PartNo. Simson: 090213 18585 211660018 211660048 9900238008 9900239283
PartNo. ZAK: 1357933128010043

CatalogueNo.: 9

2,40 €

delivery time 2-3 workdays

Details

Pair securing rings for gudgeon pin, retaining ring Ø12

OrderNo.: 14518-C-S
GTIN/EAN: 4056144153788

PartNo. Simson: 90142

CatalogueNo.: 10

5,20 €

delivery time 2-3 workdays

Details

Retaining ring 12 for gudgeon pin Simson

Genuine spare

OrderNo.: 10012-00S
GTIN/EAN: 4056144043348

PartNo. Simson: 090142 17653 260316753 1147879503

CatalogueNo.: 10

1,70 €

in stock

Details

Retaining rings 12x1 (SET two pcs) for gudgeon pin Simson

OrderNo.: 10012-B-S
GTIN/EAN: 4056144009542

PartNo. Simson: 090142 17653 260316753 1147879503 9900155062 260316750

CatalogueNo.: 10

3,10 €

in stock

Details

Wire retaining ring 12 (set of 2 pieces) for gudgeon pin Simson

OrderNo.: 10012-A-S
GTIN/EAN: 4056144153542

PartNo. MZ: 109295
PartNo. Simson: 090142 17653 260316753 1147879503

CatalogueNo.: 10

3,00 €

delivery time 2-3 workdays

Details

Bushing for connecting rod - lead bronze - ø 15x11,95 b13 mm - engine M52, M53, M54 -

Reproduction

OrderNo.: 23155-00S
GTIN/EAN: 4056144066798

PartNo. Simson: 35333 373490 1137349506 1850310004 37339 1850310005 35311 383000 213840 2150310102

CatalogueNo.: 11

5,60 €

delivery time 2-3 workdays

Details

Crankshaft complete SR1, SR2, KR50, SR2E regenerate with new original GDR connecting rod set

Used, regenerated part

OrderNo.: 1250310000-R

PartNo. Simson: 1135312504 1250310000

The price refers to the refurbishment of your crankshaft. Processing time approx. 2 - 3 weeks.
CatalogueNo.: 12

102,00 €

delivery time 5-10 workdays

Details

Crankshaft SR2, KR50, SR2E

Reproduction

OrderNo.: F6179

PartNo. Simson: 1135312504 1250310000

CatalogueNo.: 12

84,00 €

in stock

Details

Deposit for crankshaft SR1, SR2, KR50, SR2E, will be refunded if regenerable crankshaft is submitted

OrderNo.: 1250310000.p

CatalogueNo.: 12

45,00 €

delivery time 5-10 workdays

Details

Ball bearing 6302 C3 (SKF) output shaft right, S50, KR51/1, SR4-2, SR4-3, SR4-4, MZ TS250, TS250/1

OrderNo.: 10807
GTIN/EAN: 7316571370330

PartNo. MZ: 93-94.228 8380/1565
PartNo. Simson: 111500 17376 227010218 9900111500

CatalogueNo.: 13

6,90 €

in stock

Details

Shim washer 30x42x0,1 for groove ball bearing 6302 (15x42x13) - DIN 988-ST 30x42x0,1 mm - Soemtron-motor - crankshaft

OrderNo.: 24213-D-S
GTIN/EAN: 4056144029878

PartNo. Simson: 35318 2150100009 1137137503 1-0072.-04

CatalogueNo.: 13

0,90 €

in stock

Details

Shim washer 30x42x0,2 for groove ball bearing, 6302 (15x42x13) - DIN 988-ST 30x42x0,2 mm - Soemtron-motor - crankshaft

OrderNo.: 24213-00S
GTIN/EAN: 4056144029830

PartNo. Simson: 35318 2150100009 1137137503 1-0072.-04

CatalogueNo.: 13

0,90 €

in stock

Details

Shim washer 30x42x0,3 for groove ball bearing 6302 (15x42x13) - DIN 988-ST 30x42x0,3 mm - Soemtron-motor - crankshaft

OrderNo.: 24213-C-S
GTIN/EAN: 4056144029861

PartNo. Simson: 35318 2150100009 1137137503 1-0072.-04

CatalogueNo.: 13

0,90 €

in stock

Details

Shim washer 30x42x0,5 for groove ball bearing 6302 (15x42x13) - DIN 988-ST 30x42x0,5 mm - Soemtron-motor - crankshaft

OrderNo.: 24213-A-S
GTIN/EAN: 4056144029847

PartNo. Simson: 35318 2150100009 1137137503 1-0072.-04

CatalogueNo.: 13

0,80 €

in stock

Details

Shim washer 30x42x1,0 for groove ball bearing 6302 (15x42x13) - DIN 988-ST 30x42x1,0 mm - Soemtron-motor - crankshaft

OrderNo.: 24213-B-S
GTIN/EAN: 4056144029854

PartNo. Simson: 35318 2150100009 1137137503 1-0072.-04

CatalogueNo.: 13

1,20 €

in stock

Details

Oil baffle

OrderNo.: F12971

PartNo. Simson: 1250300003 1135315507

CatalogueNo.: 14

6,00 €

in stock

Details

Radial shaft seal NJK 15x42x10 - FPM - Viton - brown - dustlip

OrderNo.: 22290E
GTIN/EAN: 4056144080084

PartNo. Simson: 17586 9900944056 147417319

CatalogueNo.: 15

4,40 €

in stock

Details

Shim washer 32x42x0,2 S51,SR50, SR4-1, KR51/1, Star

OrderNo.: 11384-00S
GTIN/EAN: 4056144046608

PartNo. Simson: 371371 1137137503 1352931000273011 2150100009 2150100010 37137
PartNo. ZAK: 1352931000273011

(for S51 ball bearing drive shaft)
CatalogueNo.: 17

2,40 €

in stock

Details

Shim washer 32x42x0,3

OrderNo.: 11385-00S
GTIN/EAN: 4056144046615

PartNo. Simson: 371901 1137137503 1352931000273011 2150100009 2150100010 37137
PartNo. ZAK: 1352931000281011

(for S51 ball bearing drive shaft)
CatalogueNo.: 17

2,70 €

in stock

Details

Shim washer 32x42x0,5

OrderNo.: 11387-00S
GTIN/EAN: 4056144046622

PartNo. Simson: 371921 1137137503 1352931000273011 2150100009 2150100010 37137
PartNo. ZAK: 1352931000310011

(for S51 ball bearing drive shaft)
CatalogueNo.: 17

2,60 €

in stock

Details

Shim washer 32x42x0,8

OrderNo.: 11388-00S
GTIN/EAN: 4056144039815

PartNo. Simson: 371931 1137137503 1352931000273011 2150100009 2150100010 37137
PartNo. ZAK: 1352931000329011

(for S51 ball bearing drive shaft)
CatalogueNo.: 17

2,70 €

in stock

Details

Woodruff key (half-moon) 2x3,7 for fly wheel Simson

OrderNo.: 10574-00S
GTIN/EAN: 4056144027805

PartNo. Simson: 090315 18075 227360001 9900139183
PartNo. ZAK: 1357362118170012

CatalogueNo.: 18

1,00 €

in stock

Details

Woodruff key (crecscent) 3x5 DIN 6888 (for all Rheinmetall-engines Rh 50 - output shaft + crankshaft)

Genuine spare

OrderNo.: 22307-00S
GTIN/EAN: 4056144029670

PartNo. Simson: 1070-O-M 18076 227360005 151200
PartNo. AWZ: 9900139038
PartNo. ZAK: 1357362003170063

SR1,SR2, SR2E, KR50, SR4-1
CatalogueNo.: 19

1,30 €

in stock

Details

Set clutch sprocket / drive pinion - 43/13 teeth for Rheinmetall-engine- SR1, SR2, SR2E, KR50 - straight geared

Reproduction

OrderNo.: 24850-00S
GTIN/EAN: 4056144023425

PartNo. Simson: 1000035630 1135527501 1250400200 1135630500 1250300005

CatalogueNo.: 20

70,60 €

in stock

Details

Sprocket (13teeth) on crankshaft

Genuine spare

OrderNo.: 1135630500

PartNo. Simson: 1000035630 1250300005 1135630500

CatalogueNo.: 20

29,50 €

in stock

Details

Flat hex nut for sprocket wheel on crankshaft M10x1 DIN439 for SR1, SR2, KR50, SR4-1, SR2E

OrderNo.: 260203970

PartNo. Simson: 090027 090028 01493 260202553 260203973 9900076030 2150800004 37067 260203970
PartNo. ZAK: 1357212208070011 1357212208090012

CatalogueNo.: 22

0,61 €

in stock

Details

Hex nut M10x1, DIN934 for axle SR1, SR2, SR2E

OrderNo.: 81396-00S

PartNo. Simson: 260202553 01293 01294 9900076641 260202553

CatalogueNo.: 23

1,80 €

in stock

Details

Spring washer B10 TGL 0-137

OrderNo.: 11673-00S
GTIN/EAN: 4056144028895

PartNo. MZ: 94-38.425 94384250008171/0100
PartNo. Simson: 26030659 090172 260306601 9900957237
PartNo. ZAK: 1357111204170629, 9900022122, 1353932005013211

CatalogueNo.: 24

0,70 €

in stock

Details

Cable clip, galvanized - SR1, SR2, KR50, SR4-1, SR2E

Reproduction

OrderNo.: 22298A
GTIN/EAN: 4056144117858

PartNo. Simson: 1135326501 1250200102 04-850.39-0

CatalogueNo.: 25

11,50 €

in stock

Details

Hex nut - galvanized - WAF 14mm - at brake cam fits

OrderNo.: 11145-D-S
GTIN/EAN: 4056144039280

PartNo. Simson: 1477 01280

CatalogueNo.: 25

1,20 €

currently not available

availability info per
Email:

Details

Hexagon nut M8x1 DIN 934

Genuine spare

OrderNo.: 2100000170821

PartNo. Simson: 840115 01282

CatalogueNo.: 25

1,50 €

in stock

Details

Spring washer B8 TGL 0-137

OrderNo.: 94-38.386

PartNo. MZ: 94-38.386 9438386000 94-38.368 8171/3080 34-38.386
PartNo. Simson: 260306580 26030657 090180 090179 11336 260306571 9900022934 11339
PartNo. AWZ: 9900022106
PartNo. ZAK: 1357343005010086 1357343005013076 1357343101010094

S51 upper right side suspension strut
For old rear footrests 3931026005 and 3931025005 which are replaced by the above mentioned rear footrest sets.
CatalogueNo.: 25

0,50 €

in stock
