Cable harness KR50 with AC signal horn - including circuit diagram

Cable harness KR50 with safety circuit - including circuit diagram

Hexagon screw M8x12 933, galvanized, SR2, SR 2E

Hexagon screw M8x12 DIN 933 galvanized SR2, SR2E

Original ESKA

Set cable harness KR50 for PD-ignition system 6-12V - incl. circuit diagram

SET cable harness KR50 with direct current horn - incl. circuit diagram

Set Cable ties, black, different sizes, 75pcs

Very suitable for binding cables, tubes, in electrical sectors et cetera.

A must have for every work shop!

25 cable ties 2,4 x 100 mm
25 cable ties 2,4 x 120 mm
25 cable ties 3,6 x 200 mm
total number: 75 pcs

Set Cable ties, white, different sizes, 250 pcs

Very suitable for binding cables, tubes, in electrical sectors et cetera.

A must have for every work shop!

scope of supply:

160 cable ties 100 x 2,5 mm
40 cable ties 200 x 4,6 mm
30 cable ties 300 x 4,7 mm
10 cable ties 200 x 7,5 mm
10 cable ties 300 x 7,8 mm
total number: 250 pcs

Set Heat-shrink tubing, black 127 pieces

sorted
in practicable and reusable transparent general use box
up to a max. of 600 Volt
maximum continuous-use temperature up to 125°C
heat shrinkage approx. 2:1

Fast repair for cables and cables harness, weather protection, humidity and corrosion, ideal for hobby and shop, especially suitable for automotive applications.
Heat-shrink tubing is the most effective protection for cables.
Wires are inserted into the heat shrink tube, shrink the tube using a heat gun, means the heat shirnk tube will shrink if exposed to heat acts as a protective layer around the cable.

30x Heat-shrink tubing Ø 2 mm, lenght 40 mm
25x Heat-shrink tubing Ø 2,5 mm, lenght 40 mm
20x Heat-shrink tubing Ø 3,5 mm, lenght 40 mm
20x Heat-shrink tubing Ø 5 mm, lenght 40 mm
16x Heat-shrink tubing Ø 7 mm, lenght 80 mm
8x Heat-shrink tubing Ø 10 mm, lenght 80 mm
8x Heat-shrink tubing Ø 13 mm, lenght 85 mm

Set Heat-shrink tubing, red/black 150 pieces

sorted
in practicable and reusable transparent general use box
up to a max. of 600 Volt
maximum continuous-use temperature up to 125°C
heat shrinkage approx. 2:1
Fast repair for cables and cables harness, weather protection, humidity and corrosion, ideal for hobby and shop, especially suitable for automotive applications.
Heat-shrink tubing is the most effective protection for cables.
Wires are inserted into the heat shrink tube, shrink the tube using a heat gun, means the heat shirnk tube will shrink if exposed to heat acts as a protective layer around the cable.

40x Heat-shrink tubing Ø 2,0 mm, lenght 30 mm
40x Heat-shrink tubing Ø 2,5 mm, lenght 60 mm
20x Heat-shrink tubing Ø 3,5 mm, lenght 60 mm
16x Heat-shrink tubing Ø 5,0 mm, lenght 60 mm
10x Heat-shrink tubing Ø 6,0 mm, lenght 60 mm
8x Heat-shrink tubing Ø 8,0 mm, lenght 100 mm
8x Heat-shrink tubing Ø 10,0 mm, lenght 100 mm
8x Heat-shrink tubing Ø 13,0 mm, lenght 100 mm
total number: 150 Stück

Ignition light switch 8629.1 SR1, SR2, KR50

CatalogueNo.: 3

Toothed lock washer A8,4 (DIN6797)-E4J

CatalogueNo.: 7

ESKA Hexagon nut, zink plated M8 TGL 0-934-8.8, TGL 0-934-8, (DIN 934)

Original ESKA
MZ 500 all
CatalogueNo.: 8

Hexagon nut, zink plated M8 TGL 0-934-8.8, TGL 0-934-8, (DIN 934)

MZ 500 all
CatalogueNo.: 8

Bilux lamp 12V 15/15W - Bax15d - bulb with small socket (for 12V-ignition system order no. 50802)

CatalogueNo.: 10

Bilux lamp 12V 25/25W - Bax15d - bulb with small socket (for 12V-ignition system order no. 50802)

CatalogueNo.: 10

Bilux lamp 12V 35/35W - Bax15d - bulb with small socket (for 12V-ignition system order no. 50802)

CatalogueNo.: 10

Bilux lamp 6V 15/15W BA20d (Jahn)

CatalogueNo.: 10

Bilux lamp 6V 15/15W Ba20d (GLÜWO Germany)

CatalogueNo.: 10

Bilux lamp 6V 15/15W BAX15d

Glüwo Germany
CatalogueNo.: 10

Lamp 6V 15/15W BAX15d (small socket)

CatalogueNo.: 10

Lamp holder 15/15W old version

CatalogueNo.: 12

Lamp holder 15/15W old version

Attention – sample image, you will not get the parts on display!

CatalogueNo.: 12

Lamp holder 15/15W old version

CatalogueNo.: 12

Lamp holder 15/15W, new version with reducer

CatalogueNo.: 12

Rim for light unit for reflector, KR50, SR4-1 Spatz, MZ for dirt bikes

CatalogueNo.: 13

Headlight lens, diffusing lens IKA SR1, SR2, SR2E

CatalogueNo.: 15

Reflector (without headlamp lens) Ø108mm SR1, SR2, SR2E, SR4-1, KR50

CatalogueNo.: 16

Coat of arms speedometer - Simson SR1 SR2 SR2E KR50 MAW

Thread for speedometer cable: M16x1
CatalogueNo.: 17

Dial for speedometer for speedometer with coat of arms SR1, SR2

CatalogueNo.: 17

Glass for speedometer for emblem speedometer for SR1, SR2

CatalogueNo.: 17

Speedometer for SR2E, SR4-1, KR50, Ø48mm, 60km/h-Version - scale black/light ivory, speedometerglas arched, chromed ring

CatalogueNo.: 17

Speedometer for SR2E, SR4-1, KR50, Ø48mm, 60km/h-Version - with sealing ring, retaining clip and plastic nut for fastening

CatalogueNo.: 17

Speedometer gasket (O-Ring) 48x2mm - KR51, SR4-1, -2, -3, -4, SR50 N, S50, S51

CatalogueNo.: 17

Speedometer gasket (O-Ring) 48x2mm - square profile - KR51, SR4-1, -2, -3, -4, SR50 N, S50, S51

CatalogueNo.: 17

Speedometer ring for Coat of arms speedometer - Simson SR1 SR2 SR2E KR50 MAW

CatalogueNo.: 17

Speedometer cable KR50, new version (2xM10x1), black, 580mm

CatalogueNo.: 18

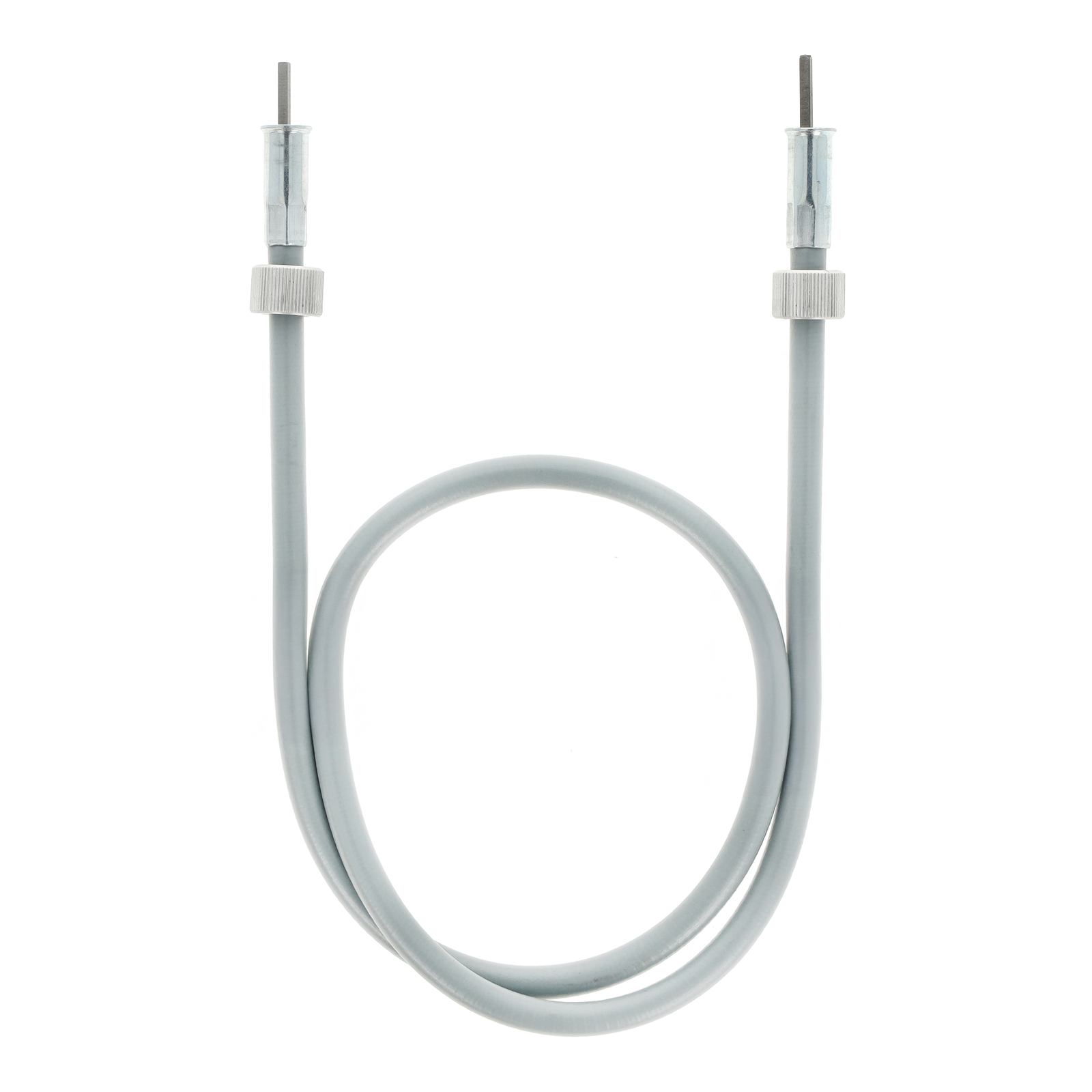

Speedometer cable KR50, new version (2xM10x1), grey, 580mm

CatalogueNo.: 18

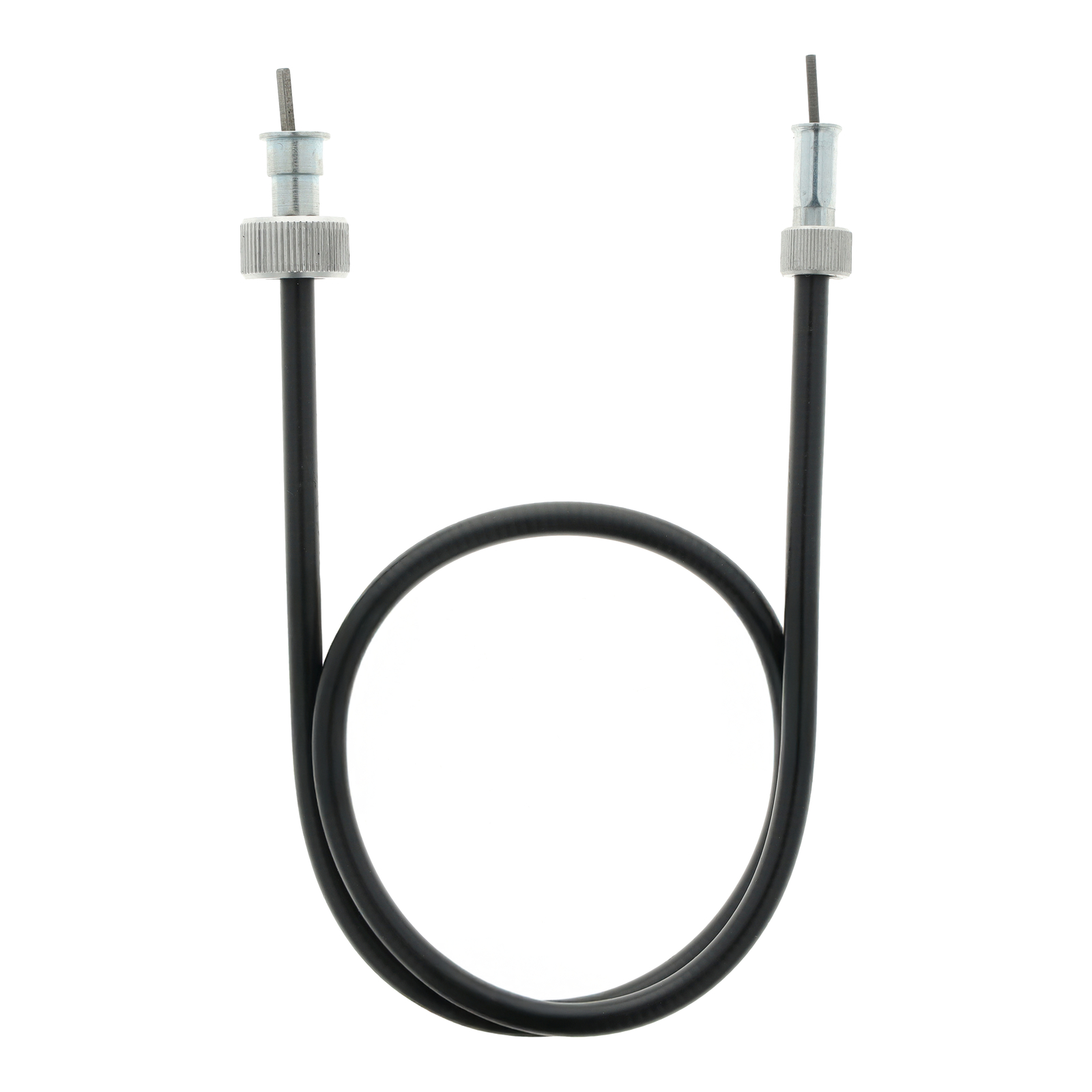

Speedometer cable KR50, old version (1xM10x1 and 1xM16x1,5), black, 580mm

CatalogueNo.: 18

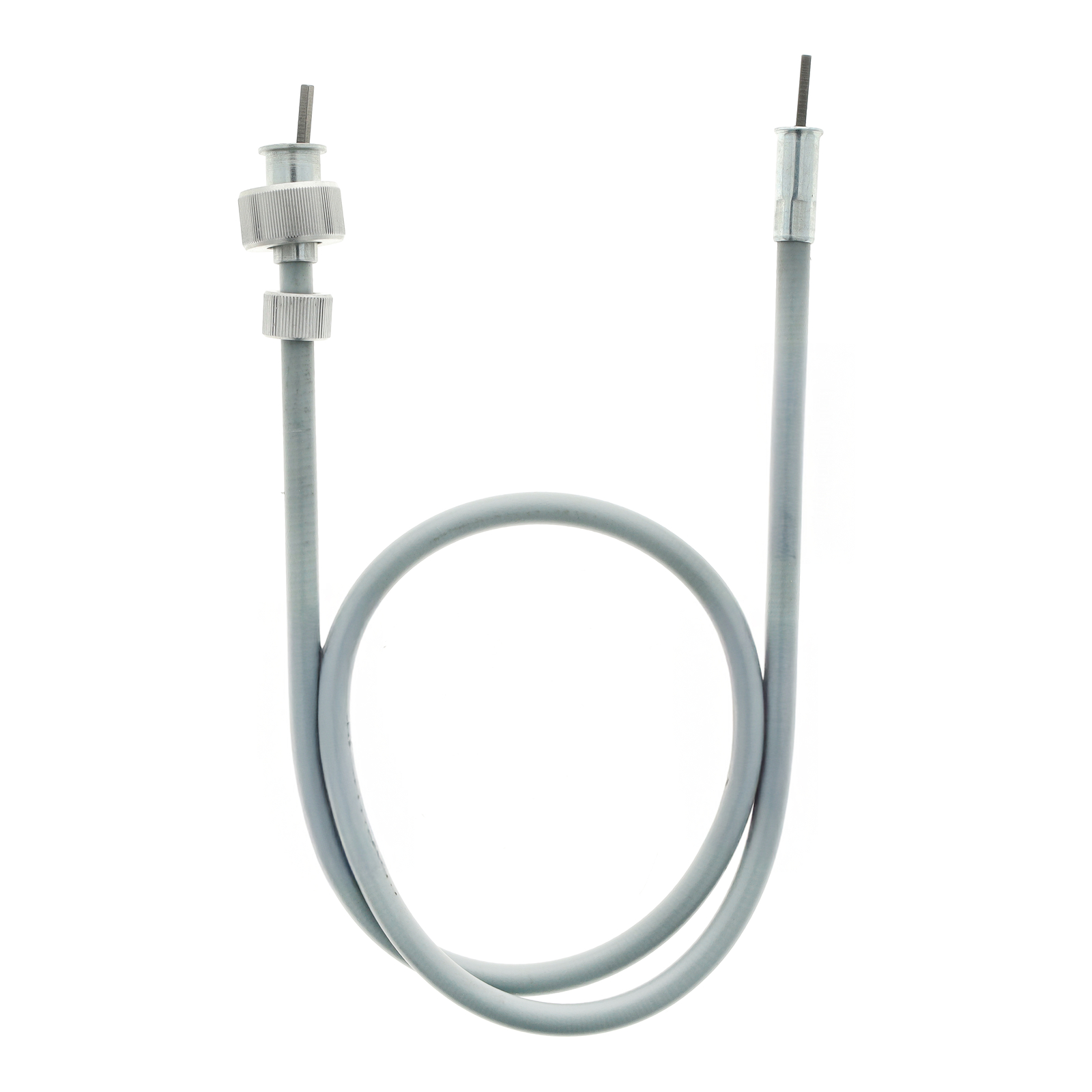

Speedometer cable KR50, old version (1xM10x1 and 1xM16x1,5), grey, 580mm

CatalogueNo.: 18

Washer for square cut speedometer cable - Mokick

The washer serves as a mechanical stop and must always be placed on the square of the Mokick speedometer shaft (+rev. counter).
CatalogueNo.: 18

Cylinder screw DIN 84-M5x12-5.8-A4K

CatalogueNo.: 20

Hexagon nut M5 TGL 0-934-6

BK- 350: not applicable with NC-battery
CatalogueNo.: 21

Toothed lock washer A5,3 (DIN6797) S53

CatalogueNo.: 22

Fillister head screw DIN 7985-M5x20-4.8-H-A4B

CatalogueNo.: 23

Taillight complete - SR2, KR50 - without rubber pad

CatalogueNo.: 24

Taillight complete - SR2, SR2E- with rubber pad

CatalogueNo.: 24

Taillight for Simson SR1, SR2, chromed

CatalogueNo.: 24

Taillight for Simson SR1, SR2, SILVER

CatalogueNo.: 24

Taillight lens -small- for Simson SR1, SR2

Material: Plastic
CatalogueNo.: 24

Rubber pad with slit for Stop and Tail Lamp KR50

CatalogueNo.: 25

Rubber plate for taillight SR1

CatalogueNo.: 25

Hexagon nut M3 TGL 0-934-6

CatalogueNo.: 34

Hexagon screw M6x8 933

Original ESKA
CatalogueNo.: 35

Hexagon screw M6x8 933 - galvanized

CatalogueNo.: 35

Protection cap for air pump

CatalogueNo.: 39

Screw connection for air pump, plastic

CatalogueNo.: 40

Screw connection for air pump, plastic, ivory

CatalogueNo.: 40
