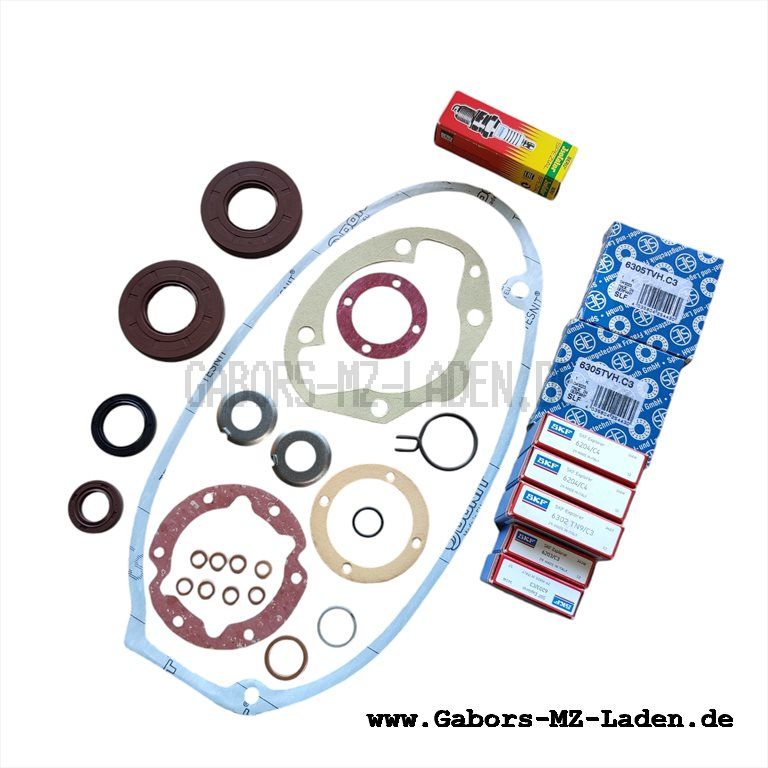

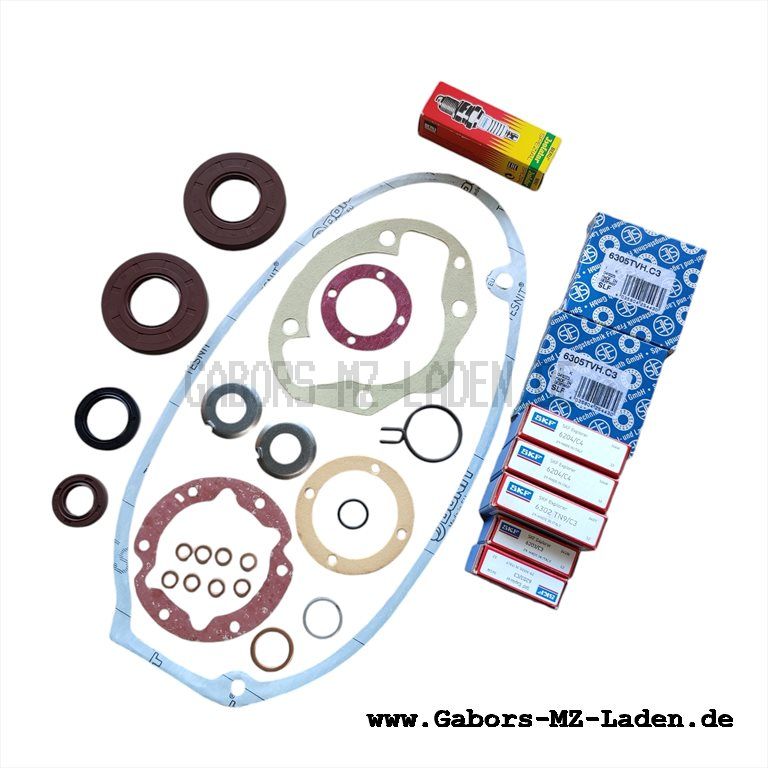

OrderNo.: 05-41.133-17,5.SET
Ball bearings:
2x 93-94.381 Ball bearing 6305 TVH C3
2x 10801B Ball bearing 6204 C4
1x 10807B Ball bearing 6302 TN9 C3 polyamide cage
2x 10805 Ball bearing 6203 C3 SKF
Shaft seals:
2x 35088E Shaft seal NJK 30x62x10 - FPM - Viton - brown - with dust lip
1x 10161E Shaft seal NJK 17x30x7 - FPM - Viton - brown - with dust lip
Gaskets:
1x 28211 Gasket for inspection hole cover
1x 15822 O-ring / round ring 14x2 NBR for rev. counter drive shaft
1x 05-41.087 Gasket for sealing cap on generator side, red
1x 2100000191697 Clutch cover gasket Klingerit
1x 2000000015859 cylinder base gasket
1x 2100000090174 Gasket for sealing cap on output shafts side
Miscellaneous:
8x 94-68.078 Gasket ring 6x10 TGL 0-7603-CU
1x 94-68.100 Gasket ring A14x18x1,5 - copper DIN 7603
1x 94-68.133 Gasket ring A18x24 for oil drainage 7603
1x 10278-00S Spark plug BERU - ISOLATOR ZM14-260 "Spezial"
2x 94-37.746 Locking washer Ø17 TGL 0-432-St
1x 2000000031330 Recuperating spring (Schaltwelle)
Cylinder and crankshaft are not included and can be ordered separately if required!
05-43.101 Crankshaft ES 250/2 17,5PS
05-42.072 Cylinder ES 250/2 17,5PS
CatalogueNo.: 1
