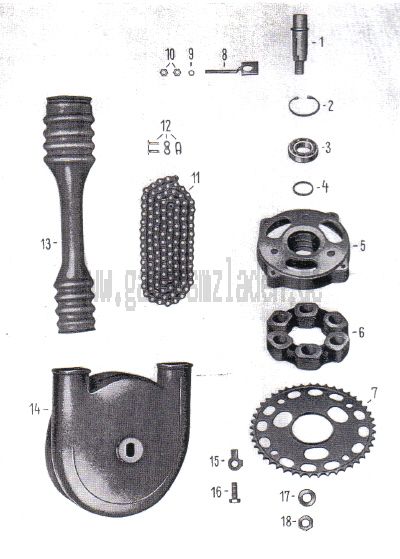

Flange bolt

CatalogueNo.: 1

Flange bolt

The parts have been sandblasted, galvanized and zinc-coated, yellow.
Attention – example picture, you will not get the part on display!
CatalogueNo.: 1

Circlip for ball bearing 47x1,75 472

(for S51 - right housing half, crank shaft bearing)
CatalogueNo.: 2

Retaining ring 47x1,6-FSt (DIN 472) - Seegerring

CatalogueNo.: 2

Ball bearing 6005 - Dimension: Ø25x47x12 mm

CatalogueNo.: 3

Ball bearing 6005 - Dimension: Ø25x47x12 mm

CatalogueNo.: 3

Groove ball bearing 6005

SKF- brand
CatalogueNo.: 3

Groove ball bearing 6005 2RSH DDU

SKF- brand, both sides closed
CatalogueNo.: 3

Groove ball bearing 6005 2Z

SKF- brand; both sides sealed.
CatalogueNo.: 3

Distance washer for chain cover

The parts have been sandblasted, galvanized and zinc-coated, yellow.
Attention – example picture, you will not get the part on display!
CatalogueNo.: 4

Distance washer for chain cover

CatalogueNo.: 4

Rear wheel drive 45T ES 175/250/300 /0 /1 /2 ETS 250, regenerated

Damping unit for rear wheel unit in completely assembled condition with
ball bearing (1x 10815A),
circlip 47x1,6 (1x 94-31.363),
sprocket 45T(1x 35473-00M)
damping rubber(1x U15097)
screws M10x25 (4x 94-07.242),
lock washer(4x 05-25.277),
spring washer B14 (1x 94-38.505)
nut M14x1,5 (1x 94-31.363)
Flange bolt (1x 05-25.265)

CatalogueNo.: 5

Rear wheel drive 48T ES 250 /0 /1 /2 ETS 250, regenerated

Damping unit for rear wheel in completely assembled condition with
ball bearing (1x 10815A),
circlip 47x1,6 (1x 15827-K-M),
sprocket 48T(1x 2100000102198)
damping rubber (1x U15097)
screws M10x25 (4x 94-07.242),
lock washer (4x 05-25.277),
spring washer B14 (1x 94-38.505)
nut M14x1,5 (1x 15705-00M)

CatalogueNo.: 5

Damping rubber

Made from natural rubber. This material is more reliable and elastic than the pvc material of the other damping rubbers offered on the market.
CatalogueNo.: 6

Sprocket 45 teeth

MZ ES 175, 175/1, 250, 250/1, 300
CatalogueNo.: 7

Sprocket 48 teeth

CatalogueNo.: 7

Sprocket, 48 teeth

CatalogueNo.: 7

Chain adjuster (partially rust and storage marks)

MZ 500 R, NR, VR, S, C
CatalogueNo.: 8

Chain adjuster complete

ES, ETS, TS, ETZ MZ 500 R, NR, VR, S, C
CatalogueNo.: 8

Plain washer 6,4 TGL 0-125-St.

CatalogueNo.: 9

Meteor Roller chain with link 1/2x5/16x116 chain links

1x12,7x7,75x116 Originalquality
CatalogueNo.: 11

Meteor Roller chain with link 1/2x5/16x118 chain links

1x12,7x7,75x118 Original quality
CatalogueNo.: 11

Chain guard rubber

ES175, 175/1/2, ES250, 250/1/2, ES300
CatalogueNo.: 13

Chain cover

CatalogueNo.: 14

Chain cover

ES 175, 175/1, 250, 250/1, 300, 175/2, 250/2, ETS 250
CatalogueNo.: 14

Chain cover ES 175, 175/1, 250, 250/1, 300,175/2, 250/2, ETS 250

Attention – sample image, you will not get the parts on display!
CatalogueNo.: 14

Lock washer 10,5 TGL 463

CatalogueNo.: 15

Hexagon screw M10x25 TGL 0-933-8.8

CatalogueNo.: 16

Curved disc spring B14 TGL 0-137

CatalogueNo.: 17

Hexagon nut M14x1,5 TGL 0-934-6

CatalogueNo.: 18

Standard parts, SET Chassis ES 175-250/2 (246 pieces)
