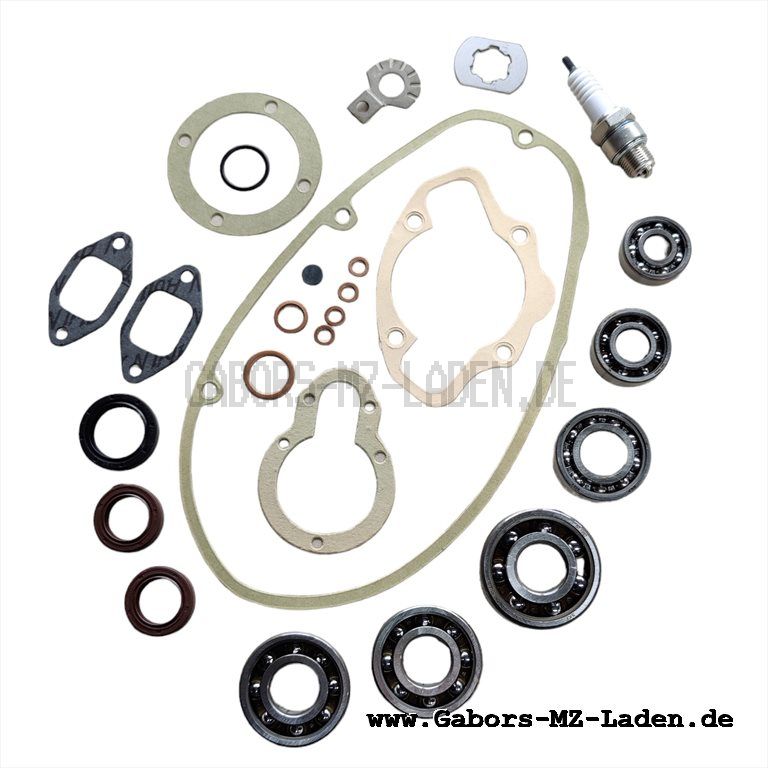

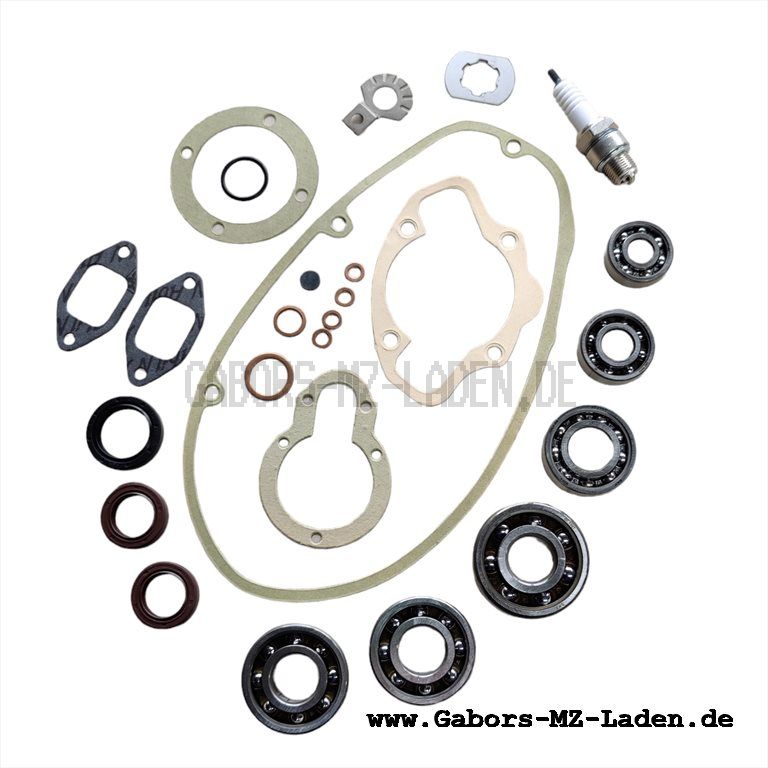

Complete set for engine overhaul MM125/3, MM150/3 - 26 pieces - for TS 125,150 as we use it in our workshop

Complete set for engine overhaul MM125/3, MM150/3 - 26 pieces - for TS 125,150 as we use it in our workshop
Complete set for engine overhaul MM125/3, MM150/3 - 26 pieces - for TS 125,150 as we use it in our workshop Complete set for engine overhaul MM125/3, MM150/3 - 26 pieces - for TS 125,150 as we use it in our workshop
OrderNo.: 14-40.023.SET

for crankshaft with 20mm bearing journal



ball bearing:

2x 10801D Ball bearing 6204 TVH (TN9) C4, polyamid cage

1x 10821A Ball bearing 6304 TVH C4 polyamid cage

1x 10800A Ball bearing 6201 C3

1x 10830 Ball bearing 6004

1x 10833 Ball bearing 6202 C3 TN9



Shaft seals:

2x 10295E Shaft seal NJK 20x30x7 - FPM - Viton - brown - with dust lip

1x 96-59.051 Shaft seal 25x35x7 (double lip)



Gaskets:

1x 2100000090211 Gasket for sealing cap

1x 2000000016184 Gasket for clutch cover, green

1x 31251-00M Cylinder base gasket

2x 31257-B-M Gasket for inlet manifold

1x 12-41.041 Gasket for sealing cap red, for crankshaft, right hand side



Miscellaneous:

1x 2000000023984 Lock washer for sprocket

1x 2100000088973 Lock washer - clutch

1x 10278-00S Spark plug BERU - ISOLATOR ZM14-260 "Spezial"

4x 94-68.078 Gasket ring 6x10 TGL 0-7603-CU

1x 94-68.221 Gasket ring 12x16 TGL 0-7603 Cu

1x 94-68.133 Gasket ring A18x24 for oil drain 7603

1x 16198 O-Ring 20x2 for kick start shaft

1x 2100000153626 Separating washer (crankcase)



Cylinder and crankshaft are not included and can be ordered separately if required!

12-43.038 Crankshaft complete TS 125,150

12-42.022 Cylinder ES 125/1, ETS 125, TS 125

14-42.026 Cylinder ES 150/1, ETS 150, TS 150
122,00 €
(incl. VAT, plus shipping)
in stock
